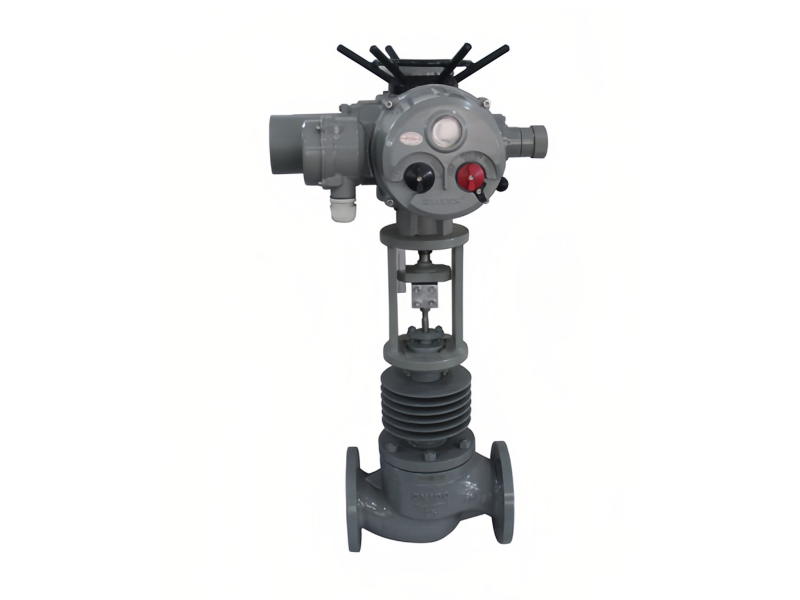

The electronic sleeve control valve is composed of a sleeve valve body and an electronic actuator. The electronic electric actuator receives the direct current signal from the regulating instrument, changes the flow rate of the regulated medium, and keeps the controlled process parameters at the set value. The fluid channel of the compact sleeve control valve is in an S-shaped streamlined shape, with low pressure drop loss, large allowable pressure difference, low noise and large flow capacity. The compact sleeve control valve is widely used for precisely controlling media such as gas, liquid and steam, and keeping process parameters like pressure, flow rate, temperature and liquid level at the set values. It adopts a balanced valve core structure, with small axial unbalanced force, large allowable pressure difference and good stability. It is particularly suitable for occasions with large flow rate, large pressure difference and not high leakage requirements.

◆ Parameter description of the control valve

Valve body type: straight-through type, Angle type

Valve cover types: standard type, heat dissipation type, low-temperature type, bellows type, jacket insulation type

Connection methods: Flange FF, RF, RJ, TG, MFM

Welding SW (40-50mm); BW (65-200mm)

Flow characteristics: Equal percentage, linear

Leakage grade: Hard seal (ASME B16.104 IV)

Soft seal (ASME B16.104 Ⅵ)

Operating temperature: -20 to +250℃ for normal temperature type

Heat dissipation type: -40 to +450℃

High-temperature type: +450~+560℃

Low-temperature type: -196 to -60℃

Actuator: Electronic actuator, electric actuator

Supply range: Size range DN40 to DN600

Pressure range: PN1.6Mpa to PN10Mpa
